Material
RVS AiSi 304 polished
Cr |
Ni |
Cmax |
Si
max |
Mn |
18
20 |
8
10,5 |
0,08 |
1,00 |
2,00 |
Tensile
strength: 500 - 700 N/mm2
0.2 limit of elasticity :195 N/mm2
Surface
Stained + pasivated
Polishing direction : 2507 mm direction

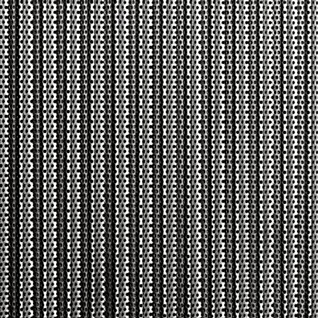

Perforation round
Diameter : 2 mm
Distance between centre points : 3,5 mm
Permeability : 30 %
Full edge : 5 mm
Fire Resistance : non flammable ( DIN 4102 )
| Measurements |
| |
|
tolerations |
Length
Width
Construction length
Ridge height
Ridge length
Panel thickness
Squareness
Surface area
Weight
No. of ridges
Fold direction
( also possible in length direction upon request, max 2500 mm )
|
: 2507 mm
: 1250 mm
: 2.492,6 mm
: 6 mm
: 14,65 mm
: 0,8 mm
: -
: 3,1 m2
: 22,1 kg/st
: 7 kg/m2
: 171
: 1250 mm direction |
±
2 mm
± 1 mm
± 0,2 mm
± 0,15 mm
DIN
± 0,3 % on L
|
Treatments
  |
