Material
Aluminium AlMg1
|
|
|
|
|
|
|
|
0,30 |
0,45 |
0,05 |
0,15 |
0,7
1,1 |
0,10 |
0,20 |
- |
Tensile
strength: 140 - 180 N/mm2
0.2 limit of elasticity :120 N/mm2
Surface
Anodisation : 20 micron
type : E6 CO/DIN 17611
Chemically treated
Natural colour - matt - 2 treatments
No anodisation points visible

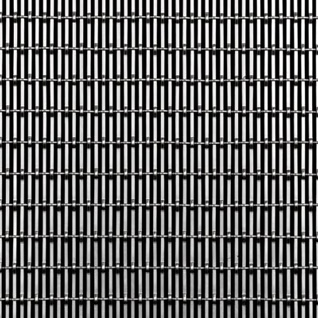

Perforation square W:2 L:16 t1:4,3 t2:17,5
square : 2 x 16 mm
distance between centre points : 4,3 x 17,5 mm
permeability : 46 %
Fire Resistance : non flammable
| Measurements |
| |
|
tolerations |
Length
Width
Tot. height
Wire gauge
Wire Breadth
Surface area
Weight
Other lengths on request
|
: 2000 mm
: 1300 mm
: 3,5 mm
: 1,5 mm
: 2,3 / 1,5mm
: 2,6 m2
: 6,4 kg/st
: 2,5 kg/m2
|
±
10 mm
± 10 mm
± 0,2 mm
± 0,2 mm
± 0,2 mm
|
Treatments
     |
