Material
Aluminium AlMg1
|
|
|
|
|
|
|
|
0,30 |
0,70 |
0,20 |
0,20 |
0,5
1,1 |
0,10 |
0,25 |
- |
Tensile
strength: 140 - 180 N/mm2
0.2 limit of elasticity :120 N/mm2
Surface
Anodisation : 15 micron
type : E6 EV1
Chemically treated
Natural colour - matt
Useable on 1 side ( other only 8 µ anodisation )
No anodisation points visible

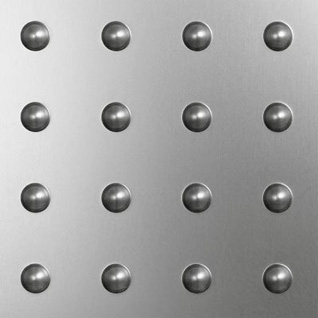

Studs profile ( actual size on cross-section )
Fire Resistance : non flammable ( DIN 4102 )
Usage : interior
| Measurements |
| |
|
tolerations |
Length
Width
Tot. height Stud distance Panel thickness Squareness Surface area
Weight
No. of studs
Diameter stud |
: 2480 mm
: 1980 mm
: 1240 mm
: 990 mm
: 3,6 mm
: 49,5/49,6 mm
: 1,5 mm
: -
(2480x1240): ±3 m2
(1980x990): ±3 m2 (2480x1240): 12,5 kg/pc
(1980x990): 7,9 kg/pc (2480x1240): 1250 (1980x990): 800
± 17 mm |
±
2 mm
± 2 mm
± 1 mm
± 1 mm
± 0,5 mm
± 0,5 mm
DIN
± 0,3 % on L
± 0,05 m2
± 0,05 m2
(4 kg/m2)
(4 kg/m2) |
Treatments
      |
