Material
Aluminium AlMg1
|
|
|
|
|
|
|
|
0,30 |
0,45 |
0,05 |
0,15 |
0,7
1,1 |
0,10 |
|
|
Tensile
strength: 140 - 180 N/mm2
0.2 limit of elasticity :120 N/mm2
Surface
Anodisation : 15 micron
type : E6 EV1
Chemically treated
Natural colour - matt
Useable on 1 side ( other only 8 µ anodisation )
4 anodisation points with a diameter of ± 3mm visible

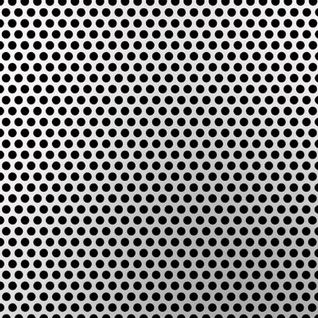

Perforation round R:5 T:8
Diameter = 2 mm
Distance between centre points : 8 mm
Permeability : 35 %
Full edge : 8 mm
Fire Resistance : non flammable ( DIN 4102 )
| Measurements |
| |
|
tolerations |
Length
Width
Panel thickness
Squareness
Surface area
Weight
|
:
2000 mm
: 2500 mm
: 1000 mm
: 1025 mm
: 1,5 mm
: -
: 2/3,1 m2
: 8,1 kg/st
: 4 kg/m2
: 12,7 kg/st
: 4 kg/m2
|
± 2
mm
±
2 mm
±
1 mm
±
1 mm
DIN
±
0,3 % on L
|
Treatments
       |
