Material
Aluminium AlMg1
|
|
|
|
|
|
|
|
0,30 |
0,45 |
0,05 |
0,15 |
0,7
1,1 |
0,10 |
0,20 |
- |
Tensile
strength: 140 - 180 N/mm2
0.2 limit of elasticity :120 N/mm2
Surface
Anodisation : 15 micron
type : E6 EV1
Chemically treated
Natural colour - matt ( other only 8 µ anodisation )
4 anodisation points with a diameter of ± 3mm visible
Protective film

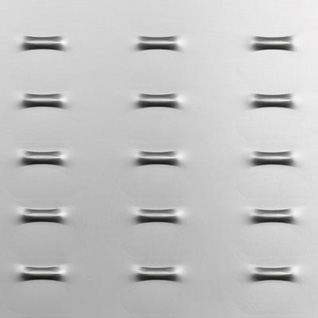

Studs profile ( actual size on cross-section )
Fire Resistance : non flammable ( DIN 4102 )
| Measurements |
| |
|
tolerations |
Length
Width
Tot. height
Stud distance
Panel thickness
Squareness
Surface area
Weight
No. of studs
|
: 2480 mm
: 1240 mm
: 4,5 mm
: 40/82 mm
: 1,5 mm
: -
3 m2
12,5 kg/pc
4 kg/pc
625
|
±
2 mm
± 1 mm
± 0,5 mm
± 0,5 mm
DIN
± 0,3 % on L
(4 kg/m2)
(4 kg/m2) |
Treatments
      |
