Material
Aluminium
AlMg1
|
|
|
|
|
|
|
|
0,30 |
0,45 |
0,05 |
0,15 |
0,7
1,1 |
0,10 |
0,20 |
- |
Tensile
strength: 140 - 180 N/mm2
0.2 limit of elasticity :120 N/mm2
Surface
Anodisation : 15 micron
type : E6 EV1
Chemically treated
Natural colour - matt
Useable on 1 side
No anodisation points visible
Protective film

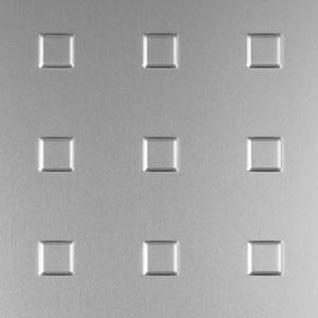

Stud profile (actual size on cross section)
Fire Resistance : non flammable ( DIN 4102 )
Usage : interior
| Measurements |
| |
|
tolerations |
Length
Width
Total height
Stud distance
Sheet thickness
Squareness
Surface area
Weight
No. of studs
Diameter stud
|
:
2450 mm
: 1960 mm
: 1190 mm
: 980 mm
: 3,1 mm
: 70 mm
: 1,5 mm
: -
: (2450x1190) : 2,92m2
: (1960x980) : 1,92m2
: (2450x1190) : 11,7 kg/pc
: (1960x980) : 7,8 kg/pc
: (2450x1190) : 595
: (1960x980) : 392
: ±22,5 x 22,5 mm
|
± 2
mm
±
2 mm
±
1 mm
±
1 mm
±
0,5 mm
±
0,5 mm
DIN
±
0,3 % on L
±
0,05 m2
±
0,05 m2
(4 kg/m2)
(4 kg/m2)
|
Treatments
      |
