Futimis Systems
sheets - square stainless steel

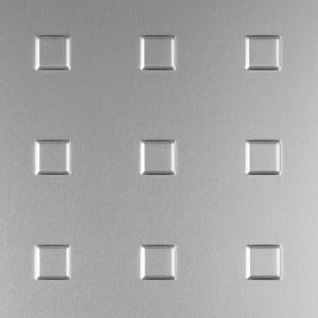

Square Stainless Steel Aluminum Panel




Material

Stainless AiSi 304 polished

18
20
8
10,5
0,08
1,00
2,00

Tensile strength: 500 - 700 N/mm2
0.2 limit of elasticity :195 N/mm2
Surface
Polished grain: 320
Polished direction: E6 EVI
Chemically treated: 2450/1960 direction
Useable on 1 side
Protective film
Fire Resistance : non flammable ( DIN 4102 )
Usage : interior

Measurements
    tolerations
Length

Width

Total height
Stud distance
Sheet thickness
Squareness
Surface area

Weight



No. of studs

Diameter stud
: 2450 mm
: 1960 mm
: 1190 mm
: 980 mm
: 3,1 mm
: 70 mm
: 1,5 mm
: -
: (2450x1190) : 2,92m2
: (1960x980) : 1,92m2
: (2450x1190) : 23,6 kg/pc
: (1960x980) : 15,6 kg/pc
: (2450x1190) : 595
: (1960x980) : 392
: ±22,5 x 22,5 mm
± 2 mm
± 2 mm
± 1 mm
± 1 mm
± 0,5 mm
± 0,5 mm
DIN
± 0,3 % on L
± 0,05 m2
± 0,05 m2
(8 kg/m2)

(8 kg/m2)

Treatments
trimmingwater jet cuttingmillingsquaring
