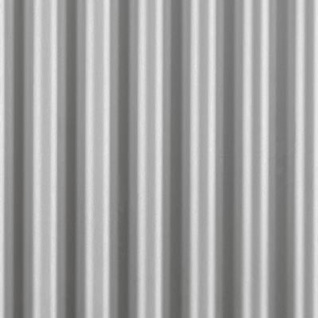

Material
Aluminium AlMg1
|
|
|
|
|
|
|
|
0,30 |
0,45 |
0,05 |
0,15 |
0,7
1,1 |
0,10 |
0,20 |
- |
Tensile
strength: 140 - 180 N/mm2
0.2 limit of elasticity :120 N/mm2
Surface
Anodisation : 20 micron
type : E6 EV1
Chemically treated
Natural colour - matt
Useable on 1 side ( other only 8 µ anodisation )
No anodisation points visible
Fire Resistance : non flammable ( DIN 4102 )
| Measurements |
| |
|
tolerations |
Length
Width
Construction length
Ridge height
Ridge length
Panel thickness
Squareness
Surface area
Weight
No. of ridges
Fold direction
|
: 2480 mm
: 1130 mm
: 1.100,0 mm
: 8 mm
: 33,33 mm
: 1 mm
: -
: 2,24 m2
: 7,5 kg/st
: 2,7kg/m2
: 33,5
: 2480 mm direction |
±
5 mm
± 5 mm
± 2 mm
± 1,0 mm
± 0,15 mm
DIN
± 0,3 % on L
|
Treatments
    |
