Material
Aluminium AlMg1
|
|
|
|
|
|
|
|
0,30 |
0,45 |
0,05 |
0,15 |
0,7
1,1 |
0,10 |
0,20 |
- |
Tensile
strength: 140 - 180 N/mm2
0.2 limit of elasticity :120 N/mm2
Surface
Anodisation : 15 micron
type : E6 EV1
Chemically treated
Natural colour - matt
Useable on 1 side ( other only 8 µ anodisation )
4 anodisation points with a diameter of ± 3mm visible

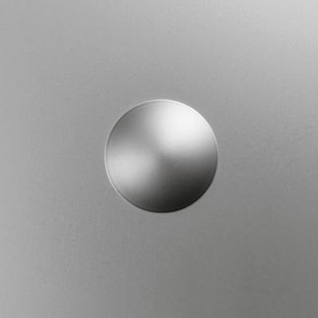

Studs profile ( actual size )
Fire Resistance : non flammable ( DIN 4102 )
| Measurements |
| |
|
tolerations |
Length
Width
Tot. height
Stud distance Panel thickness Squareness Surface area
Weight
No. of studs
|
: 1980 mm
: 990 mm
: 9 mm
: 49,5/49,6 mm
: 2 mm
: -
±2 m2
10,6 kg/pc
5,4 kg/pc
50 (10 x 5)
|
±
2 mm
± 1 mm
± 0,2 mm
± 0,5 mm
DIN
± 0,3 % on L
± 5 m2
|
Treatments
      |
