Material
Aluminium AlMg1
|
|
|
|
|
|
|
|
0,30 |
0,45 |
0,05 |
0,15 |
0,7
1,1 |
0,10 |
0,20 |
- |
Tensile
strength: 140 - 180 N/mm2
0.2 limit of elasticity :120 N/mm2
Surface
Anodisation : 20 micron
type : E6 EV1
Chemically treated
Natural colour - matt ( otner only 8 µ anodisation )
4 anodisation points with a diameter of ± 3mm visible
Protective film

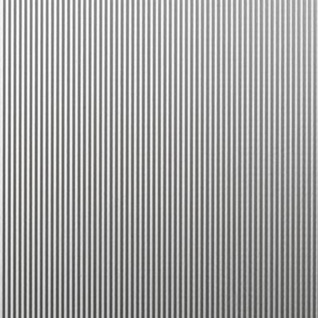

Studs profile ( actual size on cross-section )
Fire Resistance : non flammable ( DIN 4102 )
| Measurements |
| |
|
tolerations |
Length
Width
Ridge height
Ridge length
Panel thickness
Squareness
Surface area
Weight
No. of ridges
|
:
2500 mm
: 1000 mm
: 1,5 mm
: 3,2 mm
: 1 mm
: -
: 2,5 m2
: 6,2 kg/st
: 2,5 kg/m2
: 2500 mm
direction
|
± 10
mm
±
2 mm
±
0,5 mm
±
0,2 mm
DIN
±
0,3 % on L
|
Treatments
       |
