Material
Aluminium AlMg1
|
|
|
|
|
|
|
|
0,30 |
0,45 |
0,05 |
0,15 |
0,7
1,1 |
0,10 |
0,20 |
- |
Tensile
strength: 140 - 180 N/mm2
0.2 limit of elasticity :120 N/mm2
Surface
Anodisation : 20 micron
type : E6 EV1
Chemically treated
Natural colour - matt
Useable on 1 side ( other only 8 µ anodisation )
No anodisation points visible

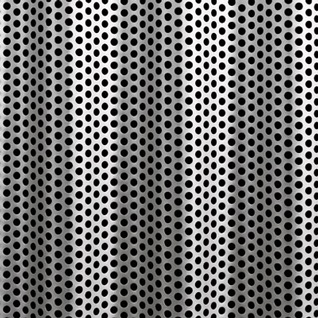

Perforation round R 5 T 8
Diameter : 5 mm
Distance between centre points : 8 mm
Permeability : 35%
Full edge : 8 mm
Fire Resistance : non flammable ( DIN 4102 )
| Measurements |
| |
|
tolerations |
Length
Width
Construction
lenght
Ridge height
Ridge length
Panel thickness
Squareness
Surface area
Weight
No. of ridges
Fold direction
|
:
3320 mm
: 1140 mm
: 1.067 mm
: 18 mm
: 76,2 mm
: 1 mm
: -
: 3,5 m2
: 7,18 kg/st
: 2,09 kg/m2
: 17,5
: 3220 mm
direction
|
± 5
mm
±
10 mm
±
2 mm
±
1,0 mm
±
1,0 mm
DIN
±
0,3 % on L
|
Treatments
    |
